| Front Door | 6×9 |
| Rear Door | 6.5 |
 |
↓ |
| Front Left | Blue (+) , Brown/Blue (-) note-1 |
| Front Right | Yellow (+) , Yellow/Black (-) note-1 |
| Rear Left | Green (+) , Green/Black (-) note-1 |
| Rear Right | White (+) , Blue/Black (-) note-1 |
 |
↓ |

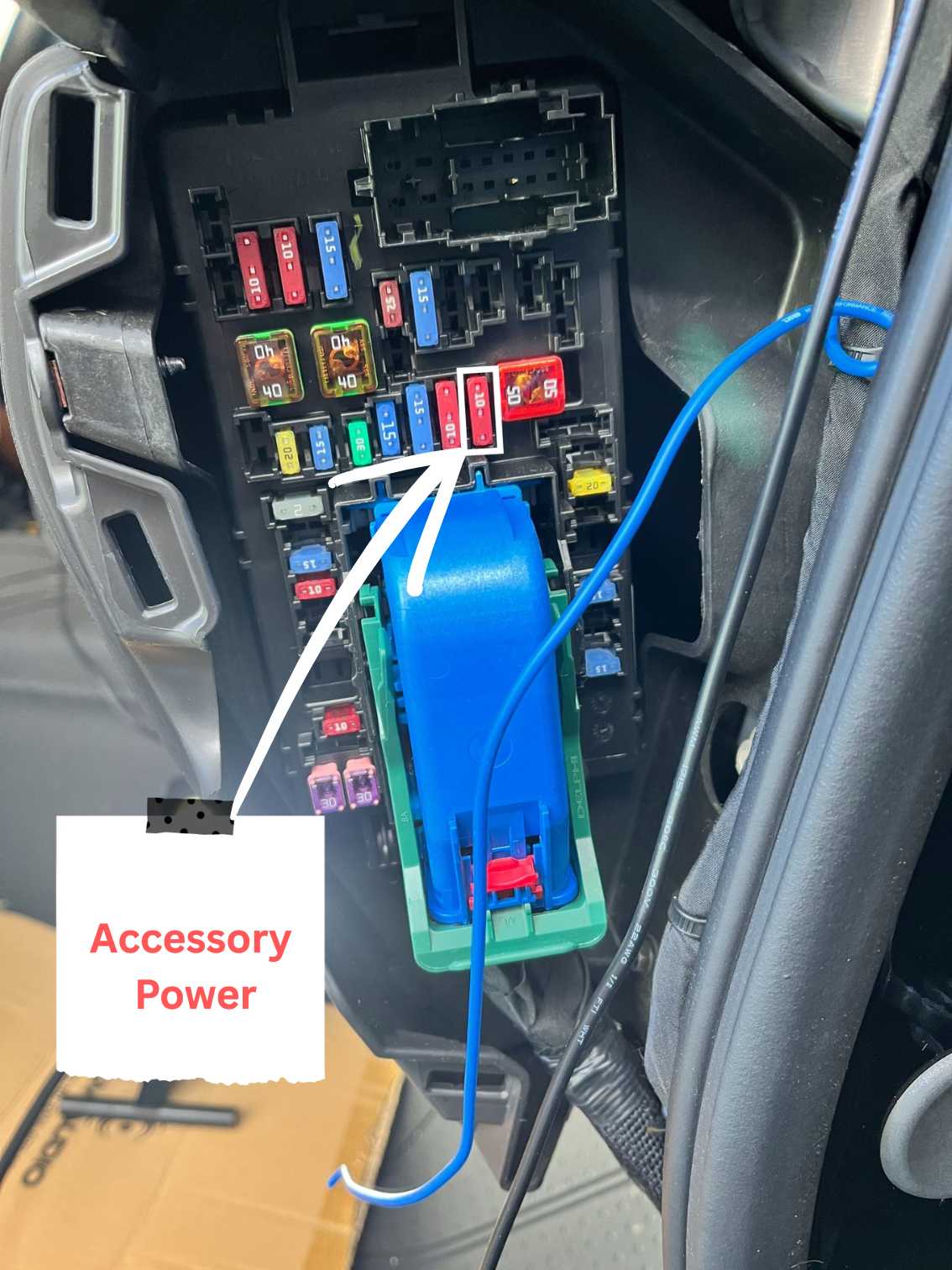

| Accessory Power | At passenger side fuse box, refer to image-2 |
 |
↓ |

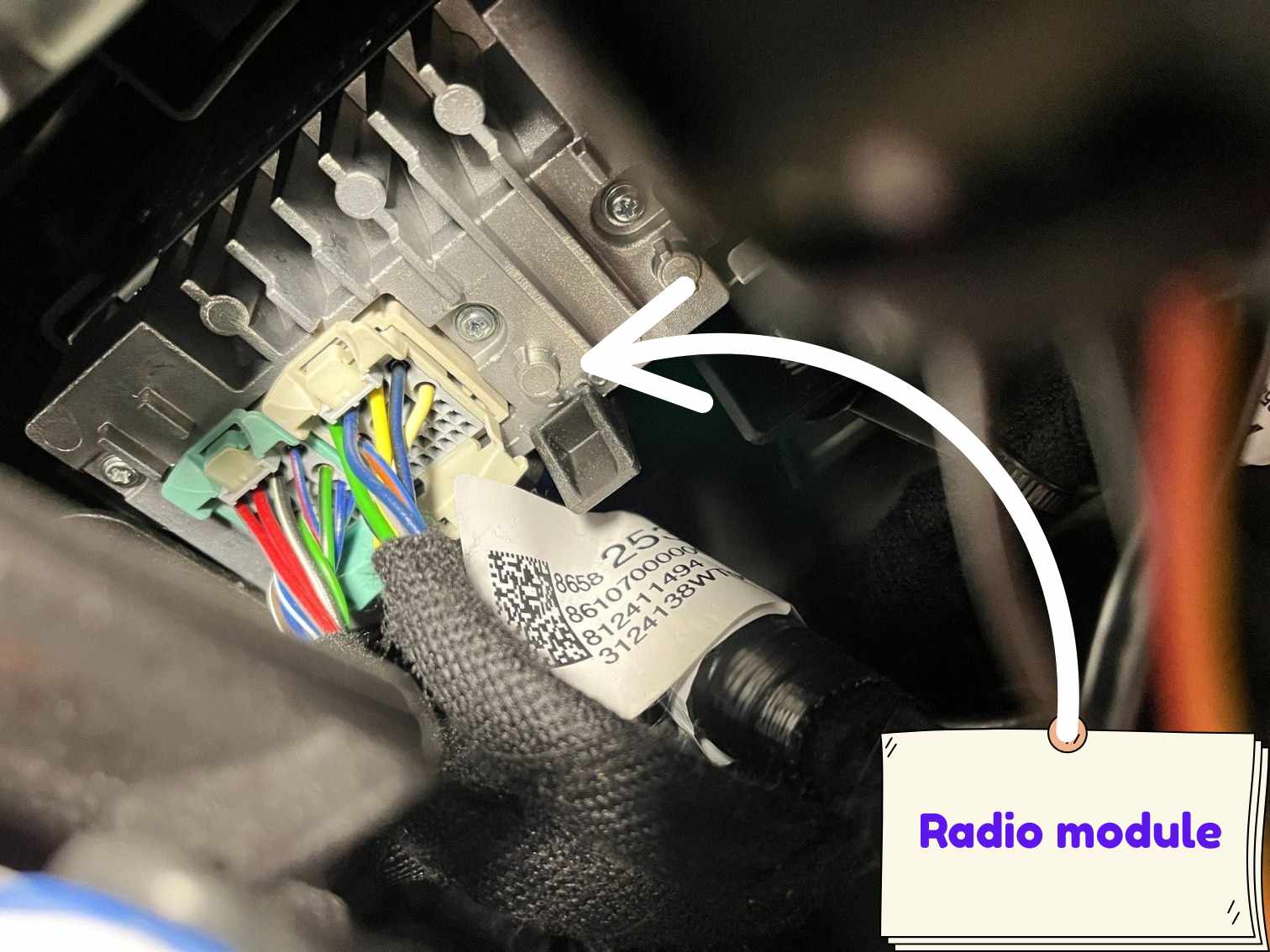

| Note 1 | Speakers wire can be found at Radio Module located above passenger kick panel, refer to image-1 |
| Important Note | The provided information is not guaranteed to be entirely correct |
 |
↓ |
| Image 1 |  |
| Image 2 |  |
